Example 3 -- Threads

This example uses multiple threads with multiple events to simulate a small application. There is no I/O involved here and no extra hardware needed for this example; the vinput generates an input internally. This example covers the following basic TimeTrac functions:

  1. TimeTrac Output -- Initial Screen, Multiple Threads with Multiple Events.

  2. TimeTrac Output -- Interrupted Operations, Linux Scheduling.

  3. TimeTrac Output -- Unfair Startup.

  4. Source code -- threads

  5. Threads Summary

TimeTrac Output - Multiple Events with Multiple Threads

Return to Top

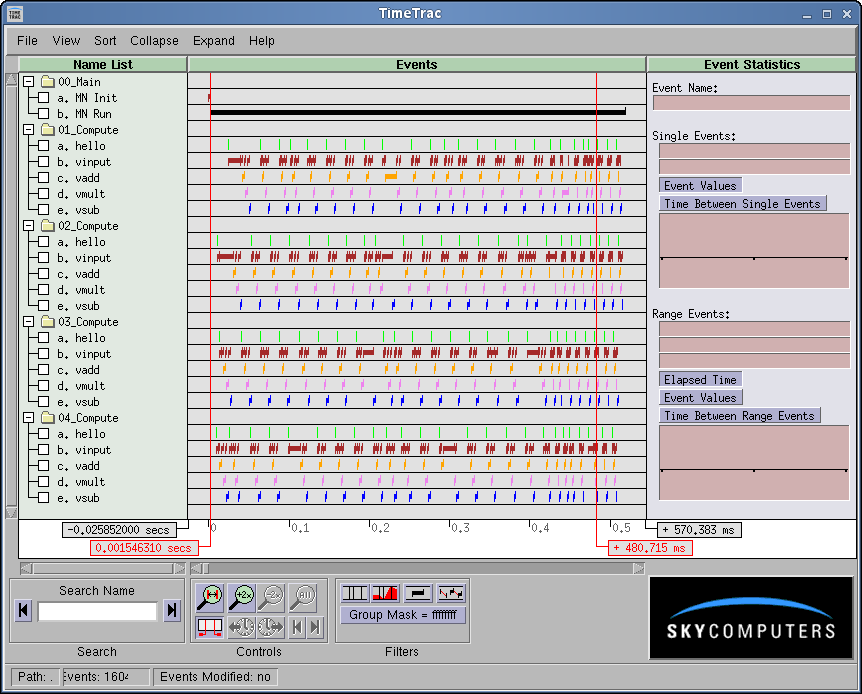

If we run this example, it will create a file named 00_Main.trc and several files named *_Compute.trc (each thread creates ts own file). If we then run TimeTrac in this directory, we will see a display similar to the that below. In ths case we have multiple threads each with multiple events instrumented. Each of the "compute" threads run the same code and should produce similar results for 25 iterations.

Threads Example

Note: At this point when running TimeTrac, you should set some viewer defaults (failure do do so may cause images on your system to appear different compared to that described here and in the following examples). First adjust the screen size for convenient viewing and then:

  • In the task control bar, select Sort and then Sort by Increasing Name
  • In the task control bar, select File and then Start Up Properties.
  • Then select Save in the lower left corner.

At first glance, it appears that the processing is not uniform. We will use the time bars to expand a region for closer examination.

TimeTrac Output -- Interrupted Operations, Linux Scheduling

Return to Top

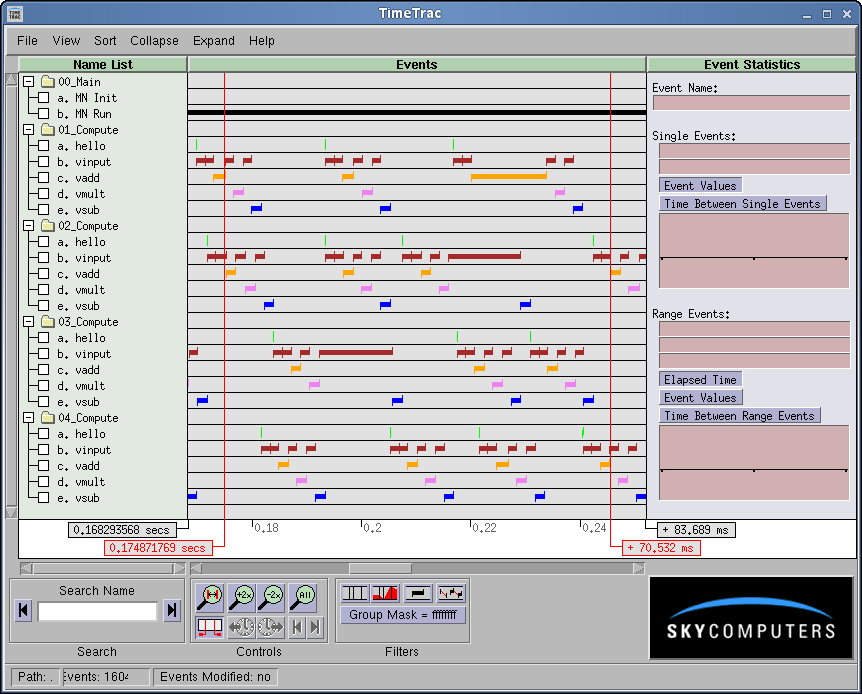

Looking at the region around 0.2 seconds, we have several threads that have been interrupted. We can visually see that some certain instances of some functions take much longer than usual. In the first case (below), one of the threads has been interrupted by the Linux scheduler in the midst of one of its operations (thread for rank #3, the "vinput" function is taking much longer than expected), and its processor was given to another thread, most likely that of rank #1 or #2. In this example, no harm has been done; these threads are free running with no dependencies between threads. In a time critical application however, this might not be the case and the unexpected switching of threads might be important.

Threads Screenshot

Nor was this an isolated case; threads for ranks #1 and #2 later have a similar issue. This system demonstrates a large amount of thread "unfairness" that is clearly demonstarted by TimeTrac.

TimeTrac Outout -- Unfair Startup

Return to Top

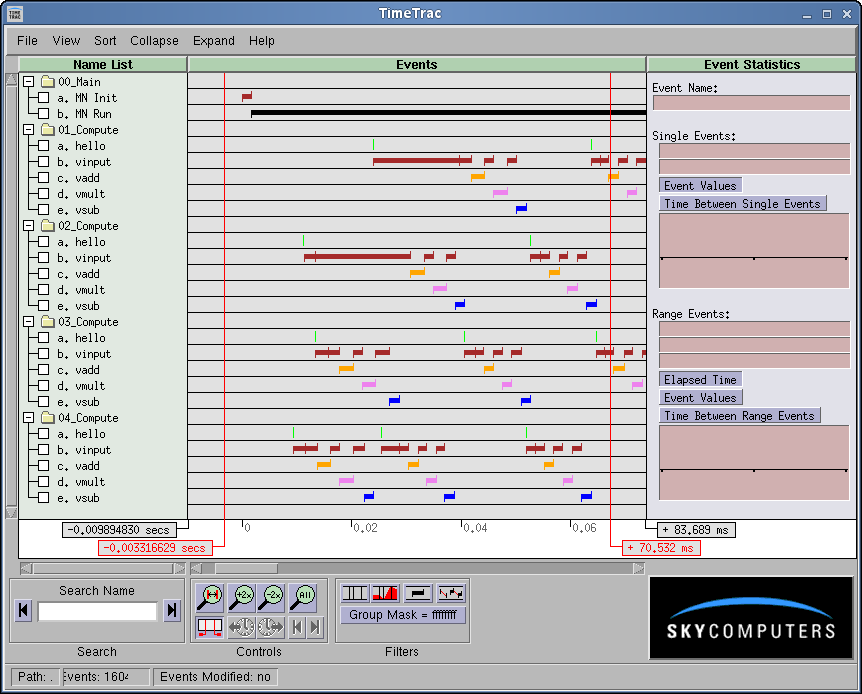

Here we are looking at the startup sequence of the 4 threads. Even though they are directed to start at very nearly the same time and in order starting with number 1, thread with rank #4 started first and got an unfair portion of the processing power.

TimeTrac Screenshot

In this example, startup sequence does not matter but it is not what we expected. In another application, this could cause a failure before we even get started. Debugging this without TimeTrac is very painful; the use of printf's in the code could change the application's timing and printf's do not always occur in the order that they appear on the screen. Using TimeTrac is a much better method of finding these issues.

Source Code

Return to Top

Module TimeTrac Functions
th_main.c All calls -- TimeTrac User Guide
th_compute.c All calls -- TimeTrac User Guide
ex_alloc.c No TimeTrac calls
ex_math.c No TimeTrac calls
ex_misc.c No TimeTrac calls
sky_ex_inc.h See time_trac.h
th_tcb.h No TimeTrac calls

Threads Summary

Return to Top

This example shows TimeTrac outputs for an application using multiple threads with multiple operations.

  • A parent thread starting / controlling multiple child threads
  • 25 executions of the same code sequence in each of 4 additional threads.
  • Multiple events within each sequence
  • How to spot unexpected (non-uniform) events.
  • How to evaluate startup and unfairness issues.
