Radar Signal Processor


  VME Radar Processing System

The Radar Signal Processor rack mount system, ruggedized and adapted for use on an aircraft or ground based tactical vehicles.

Signal Processor is Standard 19' rack mount chassis. 400 Hz, 3-phase, 115VAC aircraft power is available. Typical system can handle 200 MB/s (minimum) input data (also output data since we record the input data). Options include 10 GigE, Infiniband, FibreChannel or Serial FPDP. Optional 1GigEthernet for output products, parameter data, control messages, etc.

This configuration has a software FFT engine (not FPGA based) with a 38 to 100+ GFLOP capability Optimized math/vector library, Data/Message Passing library, Real-time OS.

SKY Selfboot/Self-Hosted feature allows for 10 second application restart or can be configured with a Solaris or VxWorks Based VME Host card with 10 GigE.

Rugged

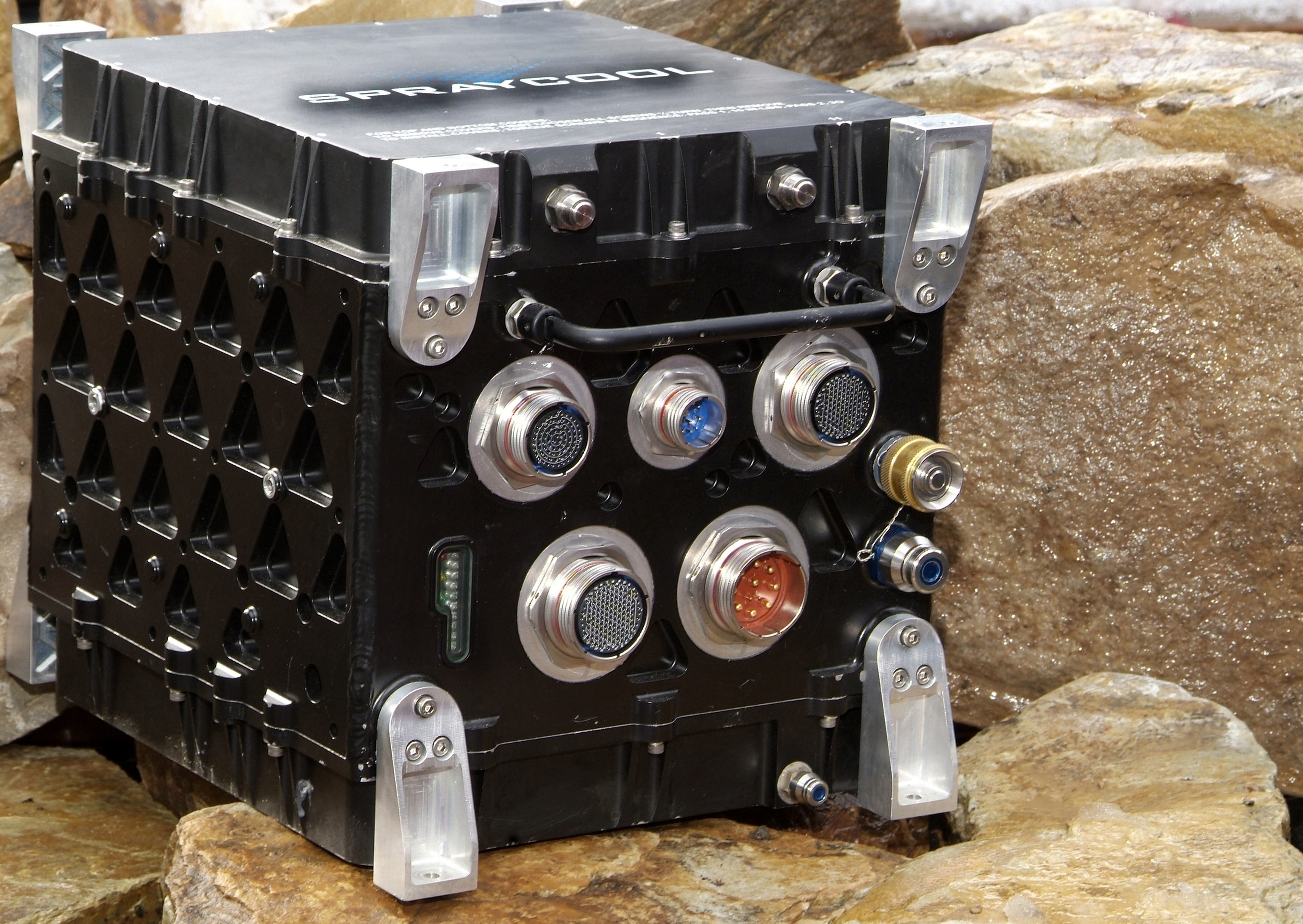

Option : SprayCool VME chassis -- 10 slots to allow growth. Less common configuration, connectors special (NRE). 400 Hz, 3-phase, 115VAC

Standard
Option : Standard 19” 12 slot VME rack mount chassis Front to back air cooled 400 Hz, 3-phase, 115VAC
